ADV Axle Assembly
High tensile steel axles designed for high load tolerance in agricultural transport applications.

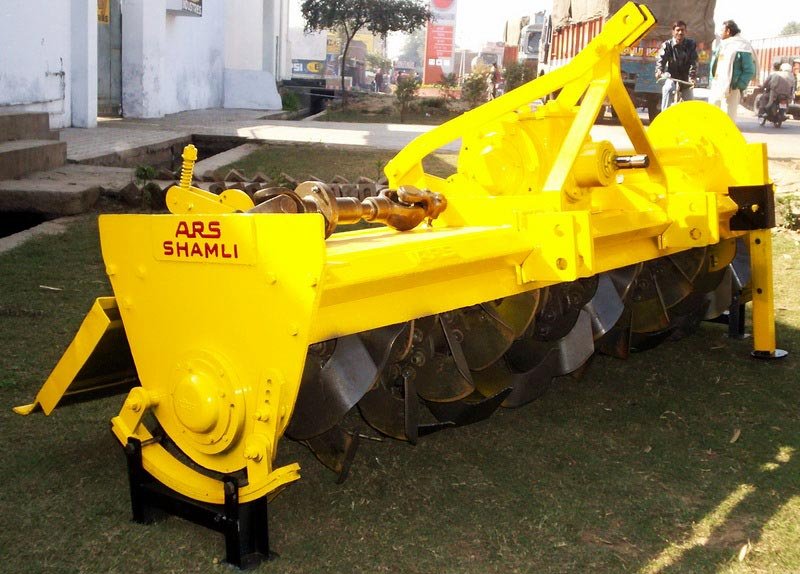

ARS Industries manufactures export-grade agricultural rotavators specifically engineered for intensive soil preparation, seedbed cultivation, and residue management. Built with heavy-duty crown-pinion gearing, seamless rotor pipes, and hardened boron steel blades, our rotary tillers deliver outstanding durability across diverse soil conditions.
Designed to seamlessly integrate with leading global tractor brands (John Deere, Mahindra, Massey Ferguson, New Holland, Kubota), our rotavators optimize fuel consumption while ensuring uniform soil pulverization.
Available configurations tailored for smallholdings, commercial agriculture, and OEM bulk buyers.
| Model Code | Working Width (mm) | Tractor Power (HP) | Number of Blades (L-Type) | Total Weight (kg Approx) | Rotor Speed (RPM) |
|---|---|---|---|---|---|
| ARS - 5 | 1484 mm (approx. 5 ft) | 35 - 40 HP | 36 Blades | 280 - 320 kg | 216 RPM |
| ARS - 6 | 1716 mm (approx. 6 ft) | 45 - 50 HP | 42 Blades | 330 - 370 kg | 216 RPM |
| ARS - 7 | 1948 mm (approx. 7 ft) | 55 - 60 HP | 48 Blades | 380 - 420 kg | 216 RPM |
| ARS - 8 | 2180 mm (approx. 8 ft) | 65 - 70 HP | 54 Blades | 430 - 470 kg | 216 RPM |
At ARS Industries, our manufacturing processes follow rigid ISO quality control protocols to ensure zero-defect production for international markets.
Precision-machined alloy steel crown pinion and gear shaft assemblies provide maximum torque transfer with minimal friction loss, operating flawlessly under extreme field conditions.
Integrated PTO drive shaft features a calibrated shear bolt protection system to prevent drivetrain overload, safeguarding both tractor PTO transmission and rotavator gear components from damage.
Constructed using high-tensile seamless steel pipes to eliminate structural flex, vibrational wear, and cracking during deep soil tillage operations in tough clay or stony terrain.
Equipped with heat-treated grade 8.8 / 10.9 boron steel L-shaped blades. Wear-resistant metallurgical composition extends blade service life by up to 35% compared to conventional carbon steel.
Heavy-duty side depth skids allow precise tillage depth control up to 180 mm, ideal for puddling in wet paddy fields or primary soil tillage in dryland agriculture.
Duo-cone floating mechanical seals retain oil lubrication and prevent dust, water, and soil slurry ingress into bearing hubs during wet tillage operations.
ARS Industries works directly with agricultural equipment distributors, tractor implement importers, and OEM brand partners across North America, Europe, Africa, the Middle East, and South Asia.
Manufactured with the same commitment to material integrity and structural endurance
High tensile steel axles designed for high load tolerance in agricultural transport applications.
Commercial grade farm trailers built with reinforced chassis steel for heavy agricultural payload.
Heavy-gauge steel rims designed for commercial agricultural and logistics trailers.
Split and lock ring type steel wheel rims manufactured for industrial material handling fleets.
Partner directly with India's premier agricultural equipment and steel rim manufacturer. Contact our export engineering team for OEM quotations.
Inquire Now
